Home Products URJA Anaesthesia Workstation
COD available
#anaesthesia #anaesthesiaworkstation

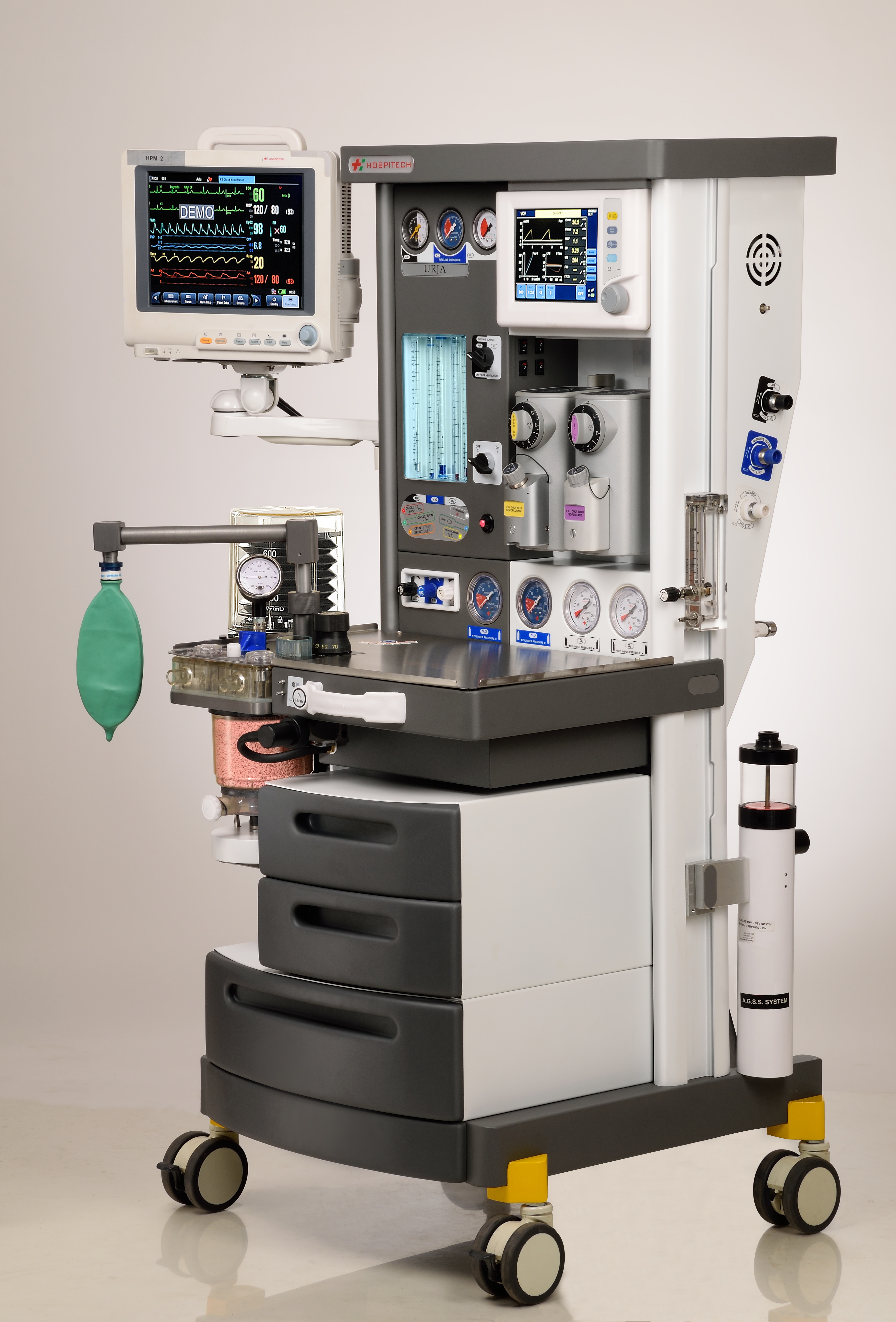

URJA Anaesthesia Workstation

Share with
Share this on :

Description

Product details

The URJA is the latest high-end anaesthesia workstation system from Reubens Hospitech Pvt Ltd providing the ideal solution for today’s busy operating room. URJA anaesthesia workstation is fully integrated anaesthesia gas delivery system that offers advanced features along with ease of use (cockpit design). It is ergonomically designed using latest technology and provides stable and effective performance that is reliable and consistent. The joint free and aesthetically designed appearance reduces the risk of unwarranted leakage and is easy to use. - High resolution 8” TFT color touchscreen - Patient data monitoring along with colored waveform and spirometery loops - Advanced technology anti-hypoxic guard - Cascaded flow meters for O2, N2O and Air especially for low flow anaesthesia - Integrated heated absorber module - Selectatec® compatible backbar - Color coded pin index yoke for attaching two O2 and N2O cylinders - Advanced modes of ventilation - Panel mounted gauges for central pipeline pressure as well as cylinder pressure - Dedicated light for illuminating the work surface - In-built proximal flow and pressure sensors - Single turn ratchet calibrated APL valve with quick release function - Electrical power outlets with cable manager - A perfect workmanship of rigid and robust structure with anti-bacterial coat - Optional anaesthetic gas monitoring - Optional electronic gas mixer with digital flowmeters - Designed and built in the INDIA

  • Filter tags

Other Products

Related Products

Compact and user friendly HospiSorb is used for absorption of carbon dioxide in circle breathing application with low flows. Compatible with Hospitech range or any existing system. - Ergonomically designed & simple to use - No need for extraneous ‘T’ adaptors - Single chamber canisters single level action for canister exchange - Bypass feature to allow canister removal during operation without loss of pressure (circle ON/ OFF switch as per clause 7.2 of ISO 8835-2: 1999 (E)) - Tight system with O ring seals - Satisfies leakage test - as per clause 5.1 of ISO 8835 -2: 1999 (E) - Easy cleaning - fully autoclavable (optional) - APL valve provided - In built provision to mount oxygen sensor - Bag ventilator selector switch Bi-stable as per clause 4.2 of ISO 8835-2:1999 (E) - For pediatric use single canister can be used. - Conventional diaphragm of Mica is replaced with a material that withstand autoclaving & movement of diaphragm is easily visible, minimizes resistance & ensure consistent performance - HospiSorb has a bypass feature allowing canister removal during operation without loss of circuit pressure as per clause 7.3 of ISO 8835 – 2: 1999 (E). Exchange of canister is simple via one single lever action. - Pressure manometer, -10 to 100 cm is provided as standard. Oxygen cell for sensing oxygen is accommodated directly by the absorber reducing the risk of leakage and ensuring a tidier system.
View Details
HospiSorb Breathing System
Parameter: Height, Selectatec Compatable: 205 mm, Draeger plug in: 205 mm, Cage mount: 205 - Parameter: Depth, Selectatec Compatable: 205 mm, Draeger plug in: 190mm, Cage mount: 210 - Parameter: Width, Selectatec Compatable: 123 mm, Draeger plug in: 107 mm, Cage mount: 137 Parameter: Depth, Selectatec Compatable: 6.2 kg, Draeger plug in: 6.2 kg, Cage mount: 6.2 kg ACCURACY OF TRANSMITTING CONCENTRATION - Test the concentration at the exit with the recommended setup on the Ventilator: Flow: Respiratory frequency: 15 times/ minute; respiratory rate. - Accuracy of all kinds of transmission modes of the anesthesia vaporizer without actual back pressure. 1) When the transmission control mode of the anesthesia gas is set at “0” position, transmitting concentration shall not exceed 0.05% (V/V). 2) When the transmitting concentration is set at any other scale except “0” position, the difference between the actual transmitting concentration and the specified value shall not exceed +30% or -20% of the concentration setup value, or shall not deviate +7.5% or -5% of the maximum scale at most, and the maximum of the two shall prevail. LIQUID CAPACITY - To fully change a vaporizer with dry wicks: 300ml; - Capacity BETWEEN THE MAXIMUM AND MINIMUM SCALE: 250ml; - Retained by wick system: 40ml. FLOW RESISTANCE - 10~15 cmH2O with vaporizer setting ON +0% at 5 LPM of O2 at 20 ± 3°C. FLOW SCOPE - 0.2~15L/ min; 0.2 ~ 10L/ min (Concentration higher than 5%) REQUIREMENT ON GAS - Clean, a mixture of purely medical oxygen, air, oxygen and nitrous oxide; - Oxygen and air: Dew point <5°C - N2O: the content of water no more than 2 mg/L ANGLE OF INCLINATION - Not exceeding 10° CONCENTRATION SET UP SCORE - Isoflurane, Halothane Concentration setup scope of the anesthetic vaporizer:0 ~ 5% - Sevoflurane, Enflurane Concentration setup scope of the anesthetic vaporizer:0 ~ 8%
View Details
VAP-1 Anaesthesia Vaporizer
Specifications Display - Display size: 15.6” Touch screen - Display type: Active matrix color TFT LCD - Resolution SVGA 1366 x 768 Electrical interface - Nurse call, USB, NET, RS232, VGA Interface Type - Main patient outlet: ISO 22M/ 15F - Oxygen inlet: DISS or NIST male Physical Dimensions - Weight < 45.3 kg - Dimensions (WxHxD): Approx: 600x402x415mm Control - Fully electronic control - Ventilation type: Blower drive - Ventilation modes: Spn-CPAP, PC-CMV, PC-ACV, PC-SIMV, PC-DUAL PAP, PC-AMV, PC-APRV, PC-MMV, VC-CMV, VC-ACV, VC-SIMV - Special functions: Manual breath, O2 therapy, standby, screen-lock, inspiratory hold, expiratory hold, sigh, ATC, PCVR, PPS, Compliance, p 0.1, calibrate, nebulizer, O2 suction. - Patient types: Adult/ Pediatric/ Neonate - Patient height: Adjustable Montoring - Real-time waveforms: PAW, Flow, Volume, EtCO2, SPO2 - Optional: CO2, SPO2 (related parameters) - Loops: P-V, V-Flow, Flow-P - Trends: 1s, 5s, 1min, 10min, 30min, 60min - Tidal volume: 10 to 2000Ml - PEEP/ CPAP: 0 to 30 cmH2O - Oxygen: 21 to 100% - I:E ratio: 1:10 to 4:1 - Inspiratory time (TI): 0.2 to 5s - Flow trigger: 0.2 to 15 l/min - Pressure trigger: -0.5 to -20cmH2O - Pressure control: 5 to 90 cmH2O, added to PEEP/CPAP - Pressure support: 0 to 90cmH2O, added to PEEP/CPAP - Pressure ramp: 0 to 2s - Expiratory trigger sensitivity (ETS): OFF, 5 TO 90% of inspiratory peak flow -Peak flow spontaneous: > 210 L/min Electrical and gas supplies - Input voltage: 100 to 120 V ~ ± 10%, 50/60 Hz AC or 24 VDC ± 10% - Power consumption: 50W typical - Protection class: Class I - Backup battery: 4 hours typical with one internal battery, hot swappable - Oxygen supply: 280 to 600 kPa (41 to 87 psi), 120L/min - Low pressure: oxygen ≤ 15L/min, max. 600 hPa for low pressure Alarms - Operation-adjustable: Low/high minute volume, low/high pressure, low/high tidal volume, low/high rate, apnea time, low/high oxygen - Optional: low/high CO2, low/high SPO2 - Special alarms: Oxygen concentration, disconnection, loss of PEEP, exhalation obstruction, flow sensor, power supply batteries, gas supply - Sound volume adjustable: 1 to 9 - Event log: Storage and display of up to 1000 events with date and time setup
View Details
RH VENT ICU Ventilator
